🛸 ESP-AstroBox

🔎 Overview

ESP-AstroBox is a FreeRTOS-based modal application for ESP32-S3-BOX-3 development board. It provides four independent modes: remote control setup with IR learning and voice commands, live sensor monitoring, NASA Astronomy Picture of the Day fetching with Wi-Fi connectivity, and an offline image storage for viewing stored photos on SD card via IR or BLE shutter control. The device works entirely standalone without a companion app or cloud backend.

ESP-AstroBox

📟 Hardware & Stack

• HW: ESP32-S3-BOX-3 with ESP32-S3-BOX-3-SENSOR accessory
• Frameworks: ESP-ADF v2.8 with ESP-IDF v5.5.3
• Libraries: libjpeg-turbo 3.1.4.1
• UI: LVGL 9.5.0, built with EEZ Studio v0.27.1
• Speech recognition: ESP-SR v2.1.5 with MultiNet7 (quantized)
• NASA APIs: NASA Astronomy Picture of the Day
• Dev tools: VSCode 1.117.0 (Ubuntu 26.04 LTS), cmake 4.3.1, Python 3.14.4, clangd 22.1.0, clang-format 21.1.8

🕹️ Modes

Mode	Description	Requirements
Setup	Learn IR buttons from physical remote (🔼🔽🆗◀️▶️) Voice commands via MultiNet7: "Learn OK" "Learn UP" "Learn DOWN" "Learn LEFT" "Learn RIGHT" "Clear all commands" Codes persisted in NVS flash	IR remote (NEC protocol) Built-in dual microphone (already in dock)
Telemetry	Live dashboard with sensor readings: Temperature & humidity 6-axis IMU accel + gyro Human presence radar	Built-in sensors (already in dock)
APOD	Fetches NASA APOD via HTTPS JPEG → RGB565 auto-conversion Images saved on SD card Pan/scroll within image with IR remote	Wi-Fi connectivity NASA API key microSD card (FAT32) IR remote (optional, for scrolling)
Vault	SD card JPEG slideshow JPEG → RGB565 auto-cached for fast loading Navigate images: BLE shutter button or IR remote button 🆗 Pan/scroll within image with IR remote	microSD card (FAT32) BLE HID shutter remote (optional, IR fallback) IR remote (optional, for scrolling)

🦾 Getting Started

Clone

git clone https://github.com/tommikulevich/esp-astrobox.git
cd esp-astrobox
git submodule update --init --recursive

Install & Export

./tools/astrobox-dev.sh --install
source ./tools/astrobox-dev.sh --export

Configure

./tools/astrobox-dev.sh menuconfig

Required configuration parameters (see app/astrobox/main/Kconfig for full list):

• CONFIG_ASTROBOX_WIFI_SSID | CONFIG_ASTROBOX_WIFI_PASSWORD - set to your network credentials
• CONFIG_ASTROBOX_NASA_API_KEY - get a free key at NASA APIs page; DEMO_KEY works but is rate-limited
• CONFIG_ASTROBOX_BLE_DEVICE_MAC - MAC address of your BLE shutter remote; required for Vault mode BLE control (IR fallback works without it)

Build, Flash & Monitor

./tools/astrobox-dev.sh build flash monitor

📸 Screenshots

Menu

Mode: Setup

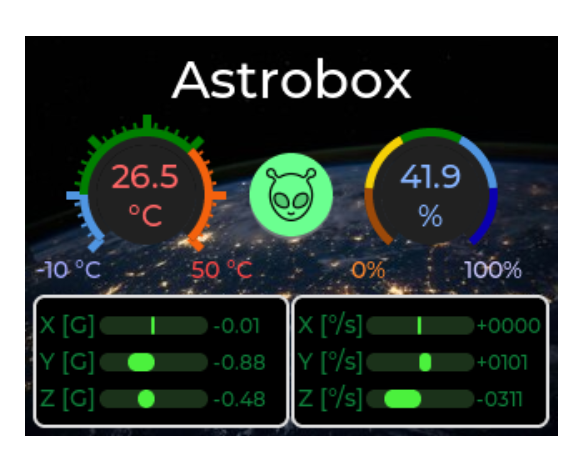

Mode: Telemetry

Mode: APOD/Vault

Displayed image: M82: Starburst Galaxy with a Superwind from 17/04/2026

⚖️ License

This project is licensed under the Apache License 2.0. See LICENSE.md for details.

Third-party components

1. ESP-ADF (frameworks/esp-adf)

   • Licensed under: ESPRESSIF MIT License
   • See: frameworks/esp-adf/LICENSE

2. libjpeg-turbo (libs/libjpeg-turbo)

   • Licensed under: IJG License | BSD-3-Clause License
   • See: libs/libjpeg-turbo/LICENSE.md | libs/libjpeg-turbo/README.ijg
